Rotax V-Twin 499.6cc EFI engine
TTI independent rear suspension
Visco-Lok 4x4 front differential
MacPherson front suspension
CVT transmission
Center skid plate
Multi-function gauge

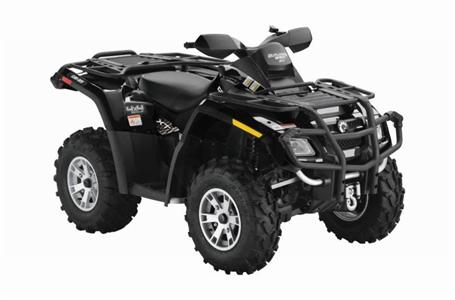

The XT package offers all the standard Outlander 500 EFI features, PLUS
Cast aluminum rims with aggressive tread Carlisle ACT radial tires
3000-pound [1,361 kg] BRP XL3000 winch
Roller fairlead and wired remote winch control
Integrated winch remote storage
Handlebar with wind deflectors
Heavy-duty front and rear bumpers
Engine
Type: 499.6cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Bore & Stroke: 82 x 47 mm
Net Power: 42 Nm @ 6,000 RPM
EFI System / Carburetor: 46mm Throttle Body, 2 Siemens VDO injectors
Starting System: Electric
Transmission: CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
Drive Train: Selectable 2w/4w shaft driven with Visco-lok front differential
Chassis
Frame: SST
Front Suspension Type: McPherson
Travel: 7 in (178 mm)
Rear Suspension Type: TTI independent
Travel: 9 in (229 mm)
Front Brake: 2 inboard hydraulic discs
Rear Brake: 1 inboard hydraulic disc
Tires/Front: 25 x 8 x 12 in (635 x 203 x 305 mm)
Tires/Rear: 25 x 10 x 12 in. (635 x 254 x 305 mm)
Wheels: Steel
Dimensions
L x W x H (in): 86 x 46 x 45 in
L x W x H (mm): 2.184 x 1.168 x 1.143 mm
Wheelbase: 51 in (1.295 mm)
Seat Height: 34.5 in (877 mm)
Ground Clearance: 11 in (279 mm)
Dry Weight: 645 lbs (293 kg)
Towing Capacity: 1300 lbs (590 kg)
Rack Capacity: 100 lbs (45 kg); 200 lbs (90 kg)
Storage: Rear storage 5.3 US gal (20L)
Fuel Capacity: 5.3 US gal. (20 L)
Features
Instrumentation: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip meter, diagnostic center, gear position, hour meter, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, auto shut off after 15 minutes
Anti-Theft: D.E.S.S. (Digital Encoded Security System)
Electrical: Prewired for winch
Lighting: 2 fender mounted headlamps (35W) with tail light / brake light
DC Outlet: Lighter type in console, standard connector in the back (15A)
Color(s) available: Yellow, Viper Red, Black, Camo
Warranty
Basic: 6 months limited factory warranty
Extended: B.E.S.T. available from 12 to 36 months
Other features
Electronic anti-theft system (D.E.S.S.)
Steel racks with 300-pound (136 kg) capacity
SST frame


Specifications
Engine
Engine Type V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Displacement 499.6 cc
Bore x Stroke 82 x 47 mm
Cylinders Twin
Engine Cooling Liquid
Fuel System 46 mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Chassis
Front Suspension McPherson
Front Travel 7 in. (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in. (635 x 203 x 305 mm)
Rear Suspension TTI independent
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 10 x 12 in. (635 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 645 lbs (293 kg)
Front Rack Capacity (lbs) 100 lbs (45 kg); 200 lbs (90 kg)
Rear Rack Capacity (lbs) 100 lbs (45 kg); 200 lbs (90 kg)
Towing Capacity 1300 lbs (590 kg)
Fuel Capacity 5.3 gal. (20 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) in. 86 x 46 x 45 in. (2.184 x 1.168 x 1.143 mm)
Wheelbase (inches) 51 in. (1.295 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Yellow, Viper Red, Black, Camo
Warranty Basic: 6 months limited factory warranty; Extended: B.E.S.T. available from 12 to 36 months
