Overview

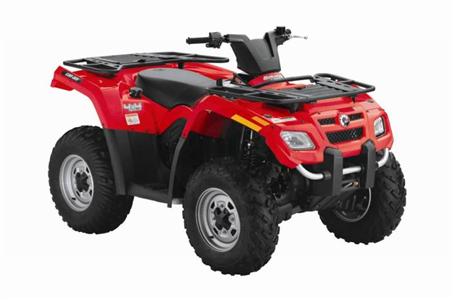

Rotax 400 EFI Engine
TTI Independent Rear Suspension
Visco-Lok 4x4 Front Differential
MacPherson Front Suspension
CVT Transmission
Center Skid Plate
Multi-Function Gauge
Standard package features
Rotax 400 EFI
TTI independent rear suspension
MacPherson front suspension
Visco-Lok auto-locking front differential
Continuous Variable Transmission [CVT] Center Skid Plate
Multi-function full digital gauge
Steel Racks with 300 pound [136 kg] capacity
25-inch radial tires with steel wheels
Engine
Type: 400cc, single cylinder, liquid-cooled, SOHC, 4-valve
Bore & Stroke: 91 x 61.5 mm
Net Power: 33 nm @ 5.750 RPM
EFI System / Carburetor: 46mm Throttle Body, Siemens VDO injector
Starting System: Electric w/ auxiliary recoil
Transmission: CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
Drive Train: Selectable 2w/4w shaft driven with Visco-lok† front differential
Chassis
Frame: SST
Front Suspension Type: McPherson
Travel: 7 in (178 mm)
Rear Suspension Type: TTI independent
Travel: 8 in (203 mm)
Front Brake: 2 inboard hydraulic discs
Rear Brake: 1 inboard hydraulic disc
Tires/Front: 25 x 8 x 12 in (635 x 203 x 305 mm)
Tires/Rear: 25 x 10 x 12 in. (635 x 254 x 305 mm)
Wheels: Steel
Dimensions
L x W x H (in): 86 x 46 x 45 in
L x W x H (mm): 2.184 x 1.168 x 1.143 mm
Wheelbase: 49 in (1.244 mm)
Seat Height: 35 in (877 mm)
Ground Clearance: 9.3 in (236 mm)
Dry Weight: 618 lbs (280 kg)
Towing Capacity: 1100 lbs (500 kg)
Rack Capacity: 100 lbs (45 kg); 200 lbs (90 kg)
Storage: Rear storage 5.3 US gal (20L)
Fuel Capacity: 5.3 US gal. (20 L)
Features
Instrumentation: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip meter, diagnostic center, gear position, hour meter, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, auto shut off after 15 minutes
Electrical: Prewired for winch
Lighting: 2 fender mounted headlamps (35W) with tail light / brake light
DC Outlet: Lighter type in console, standard connector in the back (15A)
Color(s) available: Yellow, Viper Red
Warranty
Basic: 6 months limited factory warranty
Extended: B.E.S.T. available from 12 to 36 months
Other features
Steel racks with 300-pound [136 kg] capacity
25-inch radial tires with painted steel wheels
SST frame


Specifications
Engine
Engine Type Single cylinder, liquid-cooled, SOHC, 4-valve
Displacement 400 cc
Bore x Stroke 91 x 61.5 mm
Cylinders Single
Engine Cooling Liquid
Fuel System 46 mm Throttle Body, Siemens VDO injector
Starting System Electric w/ auxiliary recoil
Chassis
Front Suspension McPherson
Front Travel 7 in. (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in (635 x 203 x 305 mm)
Rear Suspension TTI independent
Rear Travel 8 in. (203 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 10 x 12 in. (635 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 618 lbs (280 kg)
Front Rack Capacity (lbs) 100 lbs (45 kg); 200 lbs (90 kg)
Rear Rack Capacity (lbs) 100 lbs (45 kg); 200 lbs (90 kg)
Towing Capacity 1100 lbs (500 kg)
Fuel Capacity 5.3 gal. (20 l)
Ground Clearance 9.3 in. (236 mm)
Machine Dimensions (LxWxH) in. 86 x 46 x 45 in. (2.184 x 1.168 x 1.143 mm)
Wheelbase (inches) 49 in. (1.244 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Yellow, Viper Red
Warranty Basic: 6 months limited factory warranty; Extended: B.E.S.T. available from 12 to 36 months
